Our Products

 Home / Ejector Pins

Material : Silver Steel (Recomended for Plastic Moulds)

HARDNESS : Through Hardened up to 52 ± 2 HRC


Material : Hot Die Steel (H13) (Recomended for Die Casting Die)

HARDNESS : Surface Nitrided up to 60 - 62 HRC

Core up to 45 - 50 HRC

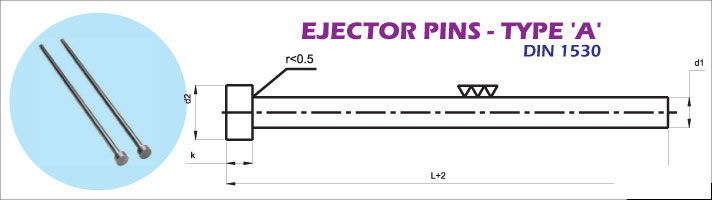

Code d1 g6 d2 k r L+2
-0.2 -0.05 100 125 160 200 250 300/315 350 400 450 500 550 600/
630
1 2.5 1.2
1.5 3 1.5 0.2
2 -0.003 4
2.5 -0.01 5
3 6
3.2 2
4 8 0.3
4.5 -0.004
5 -0.012 10
5.5
6
6.35 12
ITEPS
ITEPH		 7 5 r
8 -0.005 0.5 e
8.5 -0.014 14
9
10
10.5 16
12
12.5 -0.006 18/20 7
14 -0.017
16 22 0.8
18 24
20 26 1
25 32 10

            Ex-stock                                                                                                                                  Ordering Example : Code - d1x L = Quantity
Silver Steel ITEPS - 12 x 500 = 20 pieces Hot Die Steel ITEPH - 12 x 500 = 20 pieces

Material : Silver Steel (Recomended for Plastic Moulds)

HARDNESS : Through Hardened up to 52 ± 2 HRC


Material : Hot Die Steel (H13) (Recomended for Die Casting Die)

HARDNESS : Surface Nitrided up to 60 - 62 HRC

Core up to 45 - 50 HRC
Code d1 g6 d2
-0.2		 -0.01
1
1.5 6 3
ITECS/
ITECH 		2 -0.002
2.5 -0.008
3 8 4
L1+2 100 125 160 200
L2 50 50 75 75

            Against Order                                                                                                                                  Ordering Example : Code - d3xd1x L1 = Quantity
Silver Steel ITEPS - 3 x 2 x 16 = 20 pieces Hot Die Steel ITEPH - 3 x 2 x 16 = 20 pieces
