 Home / Die Springs

Material : Silver / HDS (H11, H13)

HARDNESS - Through Hardened / Surface Nitrided

OD
wxt
approx 		ID
TL
Order No
R
 A
Min
.Comp. 		C
Medium
.Comp. 		A
Max
.Comp. 		D
Approx
mm mm mm kg/mm mm kg mm kg mm kg mm kg

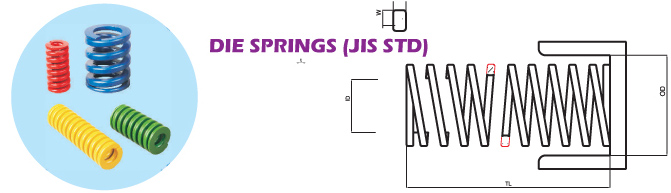

OD outer diameter
ID Inner diameter A recommended compression for maximum soriting life
w x t cross wire section (width x thickness) B recommended compression for medium soriting life
TL spriting free length C rMaximuim working compression
LR load required for 1 mm compression D rsolid compression (approximate)
Series Cross
Wire Section
TL
 Colour Load Max,
Comprossion		 Diamaeters FreeLength LR
VL
 Light Green Extra Light 50%TL
V
 Green Light 40%TL
B
 Blue Medium 37%TL
R
 Red Heavy 30%TL
G
 Yellow Extra Heavy 25%TL

  • All the essentials you have come to expect are included in JIS B 5012 springs.
  • Special Springs press die & plastic mould coil springs are interchangeable with other manufacturer's JIS B 5012 spring.


    • SELECTION OF SPECIAL SPRINGS (JIS B 5012)

    WORKING CYCLES
    SERIES LOAD COLOUR 1,000,000
    (% of Free length)     		500,000
    (% of Free length)     		300,000
    (% of Free length)     		MAX.DEFLECTION
    (% of Free length)
    SF Lightest Load Yellow 40.00% 45.00% 50.00% 58.00%
    SL Loght Load Blue 32.00% 36.00% 40.00% 48.00%
    SM Medium Load Red 25.60% 28.80% 32.00% 38.00%
    SH Heavy load Green 19.20% 21.60% 24.00% 28.00%
    SB Super Load Brown 16.00% 18.00% 20.00% 24.00%
